5G base station pogopin application

　　The rapidly expanding wireless demand stimulates the development of the pogopin connector market. The ever-expanding wireless connections in commercial, home, industrial, and municipal environments have led to an exponential increase in the demand for connectors. pogopin has been developing in the direction of miniaturization, modularization, high frequency, high precision and high reliability. With the continuous research and development of new products, pogopin pogo pins have formed an independent and complete system, pogopin (connector manufacturer) has also sprung up everywhere, and pogopin has also been widely used in various electronic products and equipment, as small as TWS Bluetooth headsets and phones. Watches, drones, as large as tablet computers, medical equipment, military industry, aerospace, etc., and with the gradual implementation of 5G plans in various countries, the world has entered a period of rapid development of 5G communication commercialization. , The shape is changeable, the compatibility is strong and supports high current. The PCB modules in 5G base station equipment such as Huawei and ZTE all use pogopin connectors to complete the connection between the board and the board in a very small space.

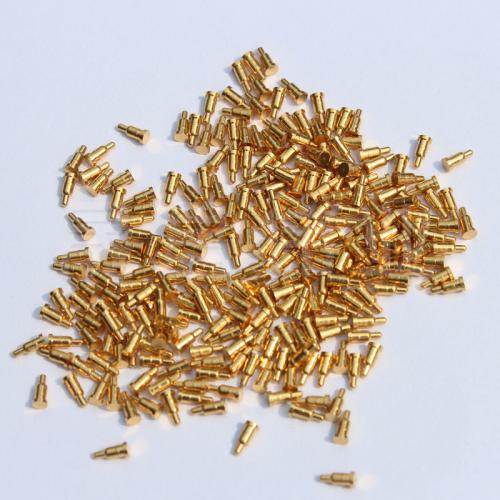

　　The pogopin connector is a spring-type connector formed by a needle, a needle tube, a spring, and a rubber core. The four basic components are pressured by high-precision equipment. The bottom of the pogopin needle is more common with tapered and inclined structures. The taper is a counter-drilled hole, and the inclined surface is a cut bevel structure. The cut bevel structure can ensure that the pogopin keeps the needle in contact with the inner wall of the needle tube when working, and allows the current to flow through the gold-plated needle and the wall of the needle tube, so as to ensure that the spring will not be caused by The current is overloaded and burned out to ensure the stability and low impedance of the pogopin. A qualified pogopin {connector manufacturer}, whether it is R&D, design or production, must have the ability to formulate R&D, design and production plans according to the actual application requirements of the product, and provide customers with strong guarantees.

　　However, the gap between China's pogopin connector technology and foreign countries is still very large. With the gradual roll-out of the 5G strategy, China's {connector manufacturers} must increase their efforts to deploy the pogopin connector market and increase investment in research and development of innovative technologies in order to get a share of the 5G large-scale market battle. From the current point of view, pogopin's prospects in the 5G field are very clear. With the construction of base stations and the improvement of 5G communication equipment, pogopin connectors will usher in a new round of blowout growth. Pogopin manufacturer, 8 structural utility model patents, 10 years of connector industry experience, design + production one-stop supply chain. The factory covers an area of 12,000 square meters, a dust-free purification workshop, and a production capacity of 3000K/month. Provide free prenatal risk assessment, reduce customer risk factor, mirror turning, hair process, smooth pressing, no pin stuck, no abnormal noise, industrial corrosion resistance level, adapt to various harsh environments, 11 QC strict inspection procedures, and eliminate Good products flow out, delivery is on time, [Dongguan Shuangmeng] has been in business for 10 years to deliver every order on time.
