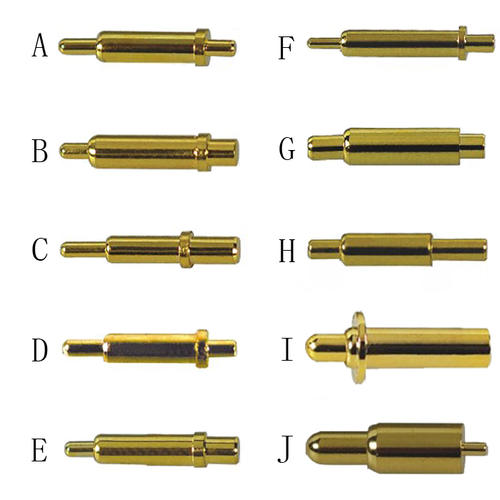

Application range and advantages of PogoPin connector

　　Pogo pin connectors are not only widely used in the installation of household appliances in life, but also in military systems such as aerospace, national defense, etc. It is also a component frequently contacted by electronic engineers. As for its function, it is mainly to build a bridge of communication between blocked or isolated circuits in the circuit, so that the current can flow and the circuit can realize the predetermined function.

　　PogoPin connector is an indispensable part of electronic equipment. Observing along the path of current flow, you will always find one or more Pogo pin connectors.

　　And the role of the Pogo pin connector cannot be ignored. First, it helps to improve the production process. Its appearance simplifies the assembly process of electronic products and simplifies the mass production process. Secondly, it is easier to repair. If a certain electronic component fails, the failed component can be quickly replaced when the Pogo pin connector is installed; at the same time, the Pogo pin connector is easy to upgrade. After Zui, the use of the Pogo pin connector can improve the variety of designs Sex and flexibility.

　　Electricity is inseparable in life, and Pogo pin connector is also inseparable. Pogo pin connectors are also called plug-ins, sockets and plugs in China. Generally, they refer to electrical Pogo pin connectors, which are devices that connect two active devices to transmit current or signals.

　　Molex also launched two new series of patch type right-angle FPC spring pin connectors for mobile phones, digital cameras and other small applications. According to reports, the 0.50mm pitch FPC connector of the 501461 series provides a profile with a height of only 0.80mm and a depth of 3.20mm. It is said to be the shortest and smallest spring pin connector among all similar models on the market.

　　The bottom contact connector has 4 to 8 circuit specifications, its rated current and voltage are 0.3A and 50V, and can be used for 0.12mm thick FPC cables. It has a unique BackFlip clamp, which facilitates the insertion and removal of cables in tight spaces, and has a super strong FPC cable clamping force.

　　On the other hand, Bluetooth technology cannot completely replace wired connections, and with the diversification and multi-functional development of electronic products, many electronic products will have both wired and wireless connection interfaces. This will not reduce the amount of connectors, but increase them. The development of the pogo pin connector variety has promoted the development of the pogo pin connector industry.
